CARGRAPHIC Sport Exhaust System - cat-back integrated electronic exhaust valves

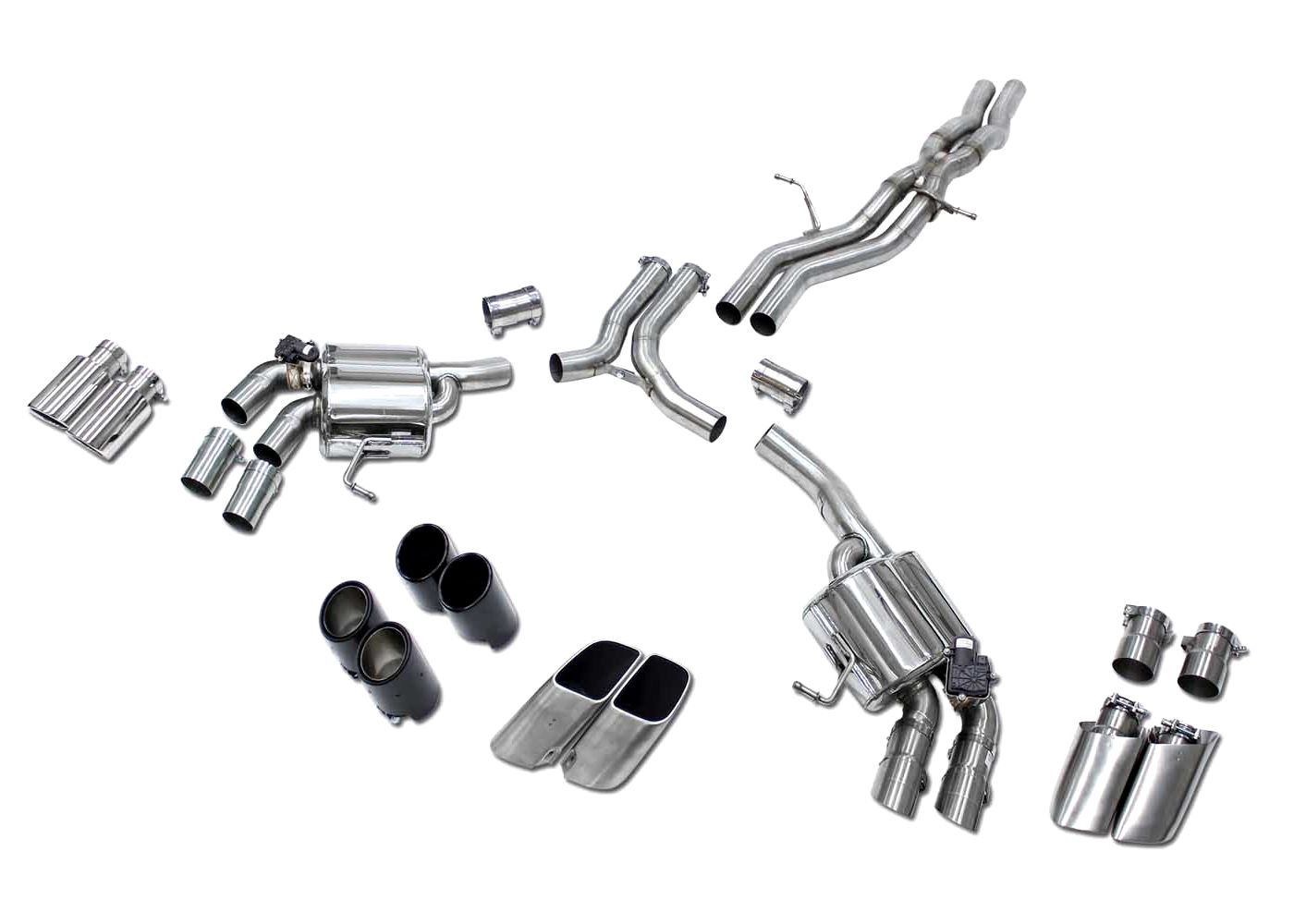

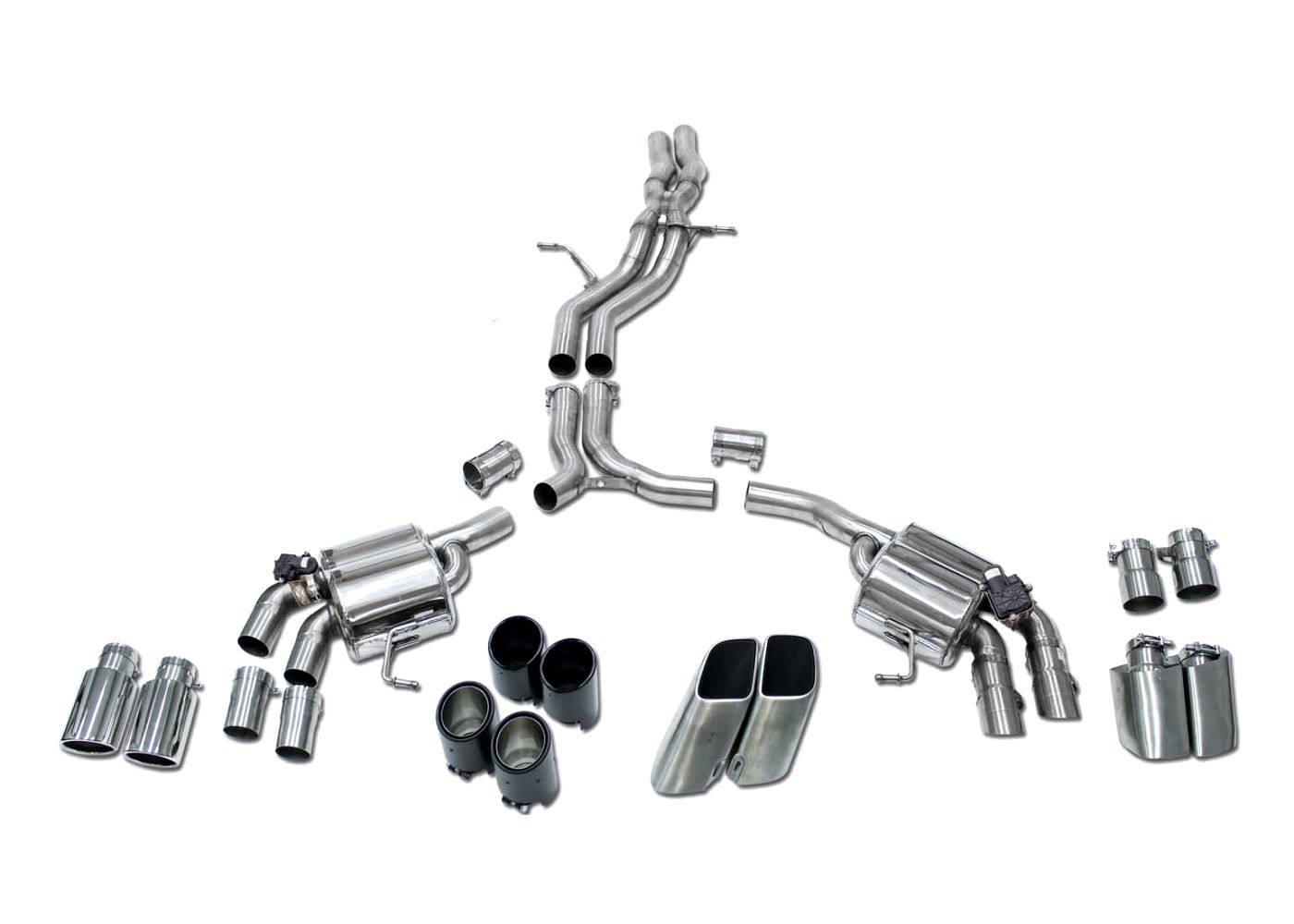

Consisting of:

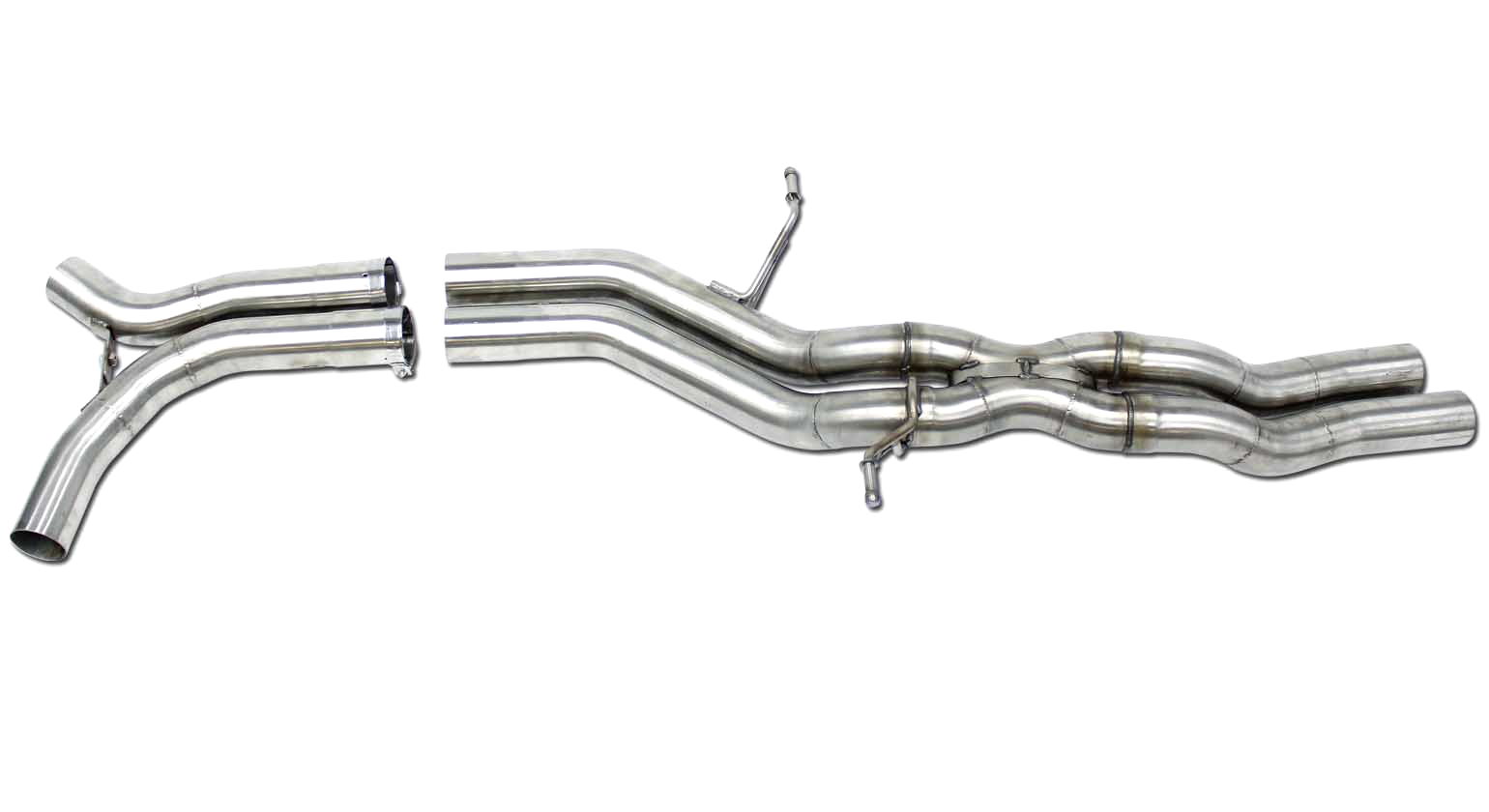

- CARGRAPHIC H-Pipe
- CARGRAPHIC Centre section, non-resonated
- CARGRAPHIC Sport rear silencer set with integrated electronic exhaust valves
- Fitting kit
To be used with original Porsche Macan S or Turbo trims or with optional available CARGRAPHIC sport tailpipes
SOUND / SUPER SOUND - switchable dual-mode:
Valves closed: Quieter tuned enhanced sporty SOUND note, practical pleasant cruising mode.
Valves open: Aggressive amplified enhanced SUPER SOUND note, sharper, crisper and volume increasing freer-flowing mode - also accompanied with burbling and backfire with every application of the accelerator pedal.
NO DRONE OR RESONATION even with further CARGRAPHIC exhaust components
Fits for:
- Porsche 995.1 (95B.1) Macan Turbo 3,6l V6
- Porsche 995.2 (95B.2) Macan Turbo 2,9l V6
Features:
- Perfectly matched exhaust components
- Absorptive silencer design with CNC mandrel-bent pipework
- Integrated electronic exhaust valves
- Fully made from SS304L lightweight stainless steel
- High-performance components, dyno tested
- Olive- and slide connections enable easy installation and perfect adjustment
- Aeroquip fittings allow heat expansion without cracking
- Reinforced laser-cut brackets
- Exhaust valve specification as used by OE / factory manufacturers
- Reduced back pressure due to freer flowing
- Reduced operating temperature
- Maximized performance
- Improved throttle response, freer revving
- Improved enhanced acoustics with no drone, resonation or vibration
- Improved low-level tone with sharper, crisper and volume increasing sound with revs
- Model specific tuned sound still in keeping with the Marque
- Weight reduction
PERFORMANCE - Made in Germany
up to 11KW(15PS) more power and 17Nm additional torque
Attention:
For the control of the integrated electronic exhaust valves, our optionally available performance exhaust valve control is additionally required. Alternatively, the exhaust valves can also be controlled via the control system of the original Porsche Sport exhaust system (PSE).
CARGRAPHIC SS304L lightweight stainless steel tailpipe trims are optionally available in the following finishes:
- Stainless steel mirror polished
- Matt-Black Thermopaint
- Gloss-Black enamelled
- Visual-Carbon Matt-Finish with stainless steel liner
- Visual-Carbon Gloss-Finish with stainless steel liner
- Visual-Carbon Gloss-Finish with perforated insert
- OEM Turbo-Look Silver
- OEM Turbo-Look Matt-Black Thermopaint
