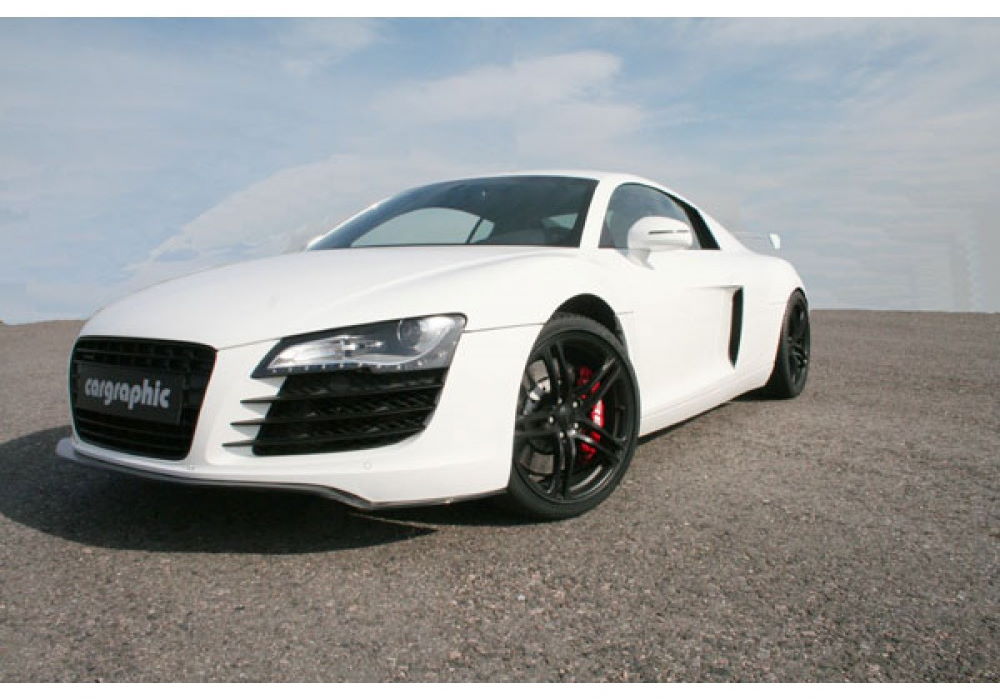

The CARGRAPHIC FA-LiftSystem Evolution is the ideal solution for Audi drivers who want to travel safely and comfortably with their R8 Typ 42 4,2l V8, regardless of the obstacles on the road. With this innovative, patented system, you can easily lift the front of your vehicle to smoothly pass over curbs, speed bumps, or steep driveways. It also significantly simplifies loading your vehicle onto a transporter.
Key Benefits at a Glance:

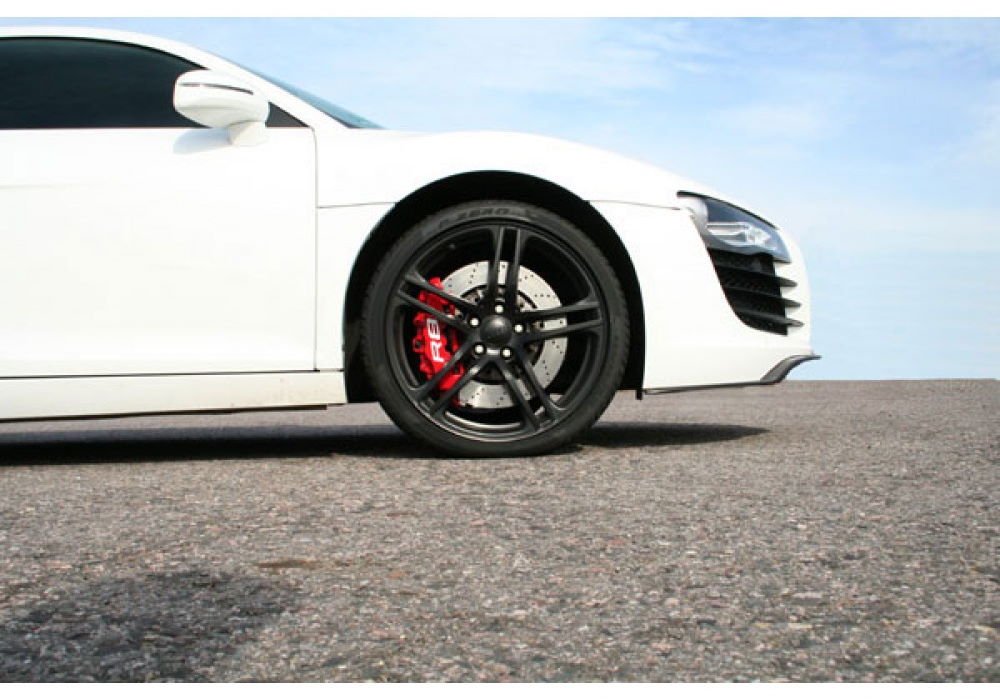

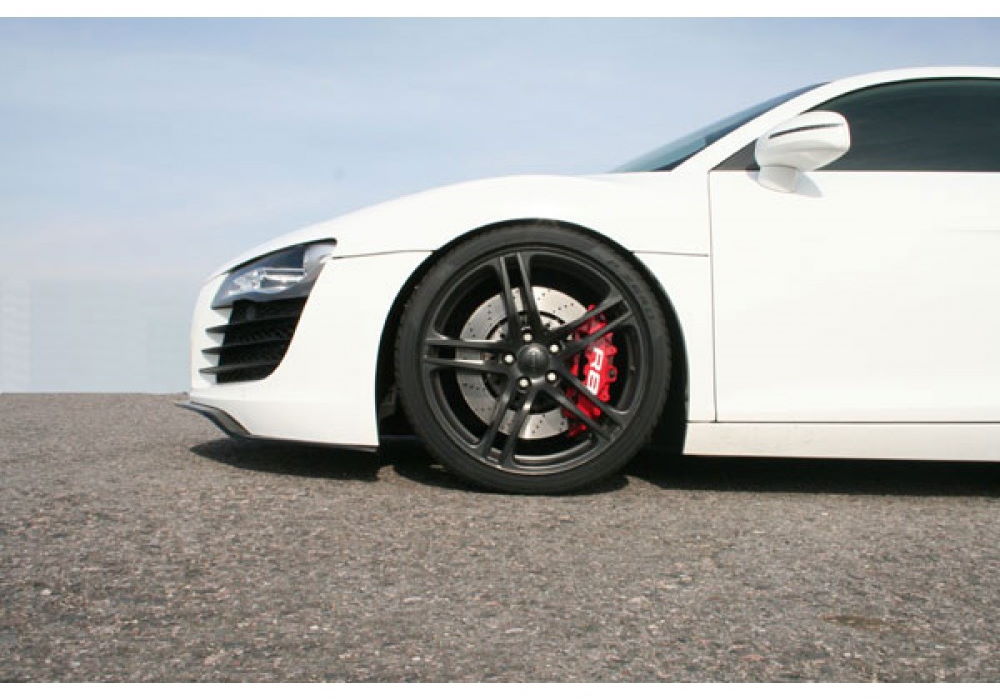

- Body lift of 55 mm (measured at the fender), up to 72 mm at the front spoiler.
- Quick response time: The system reaches maximum lift in just 15 seconds.
- No impact on driving dynamics: The system is designed not to affect the original driving behaviour.
- Safe control: Automatic lowering at 50 km/h provides added protection.
- Pneumatic operation: Avoids risks associated with hydraulic fluids.
- Unchanged trunk space: Integration does not affect cargo volume.
- Lightweight: Weighs only about 3 kg.
- Easy installation: The installation takes approximately 3 hours and can be done easily.

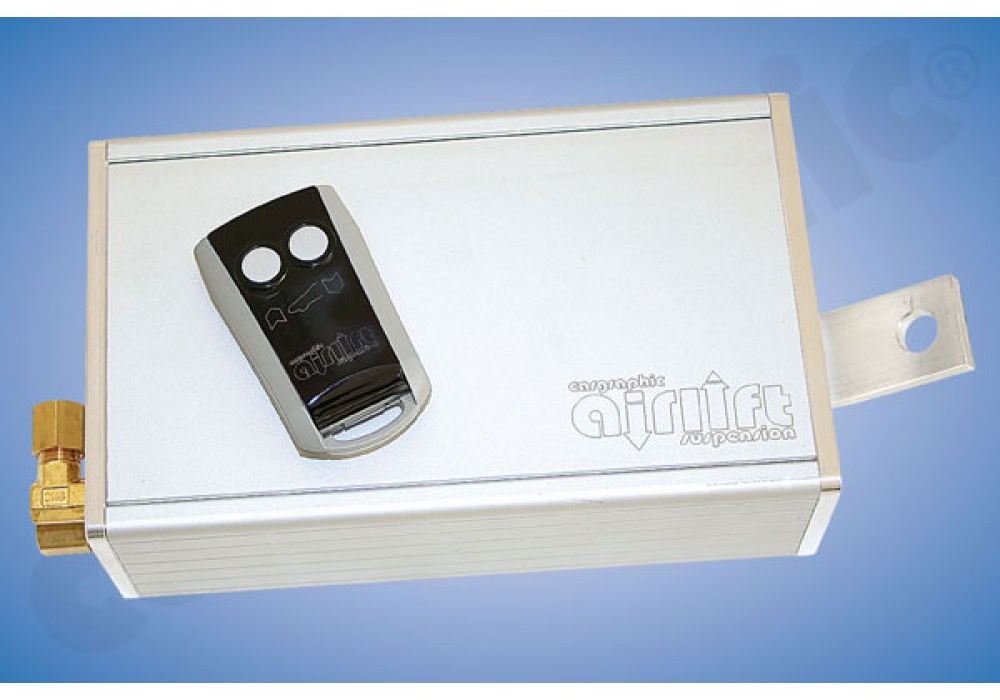

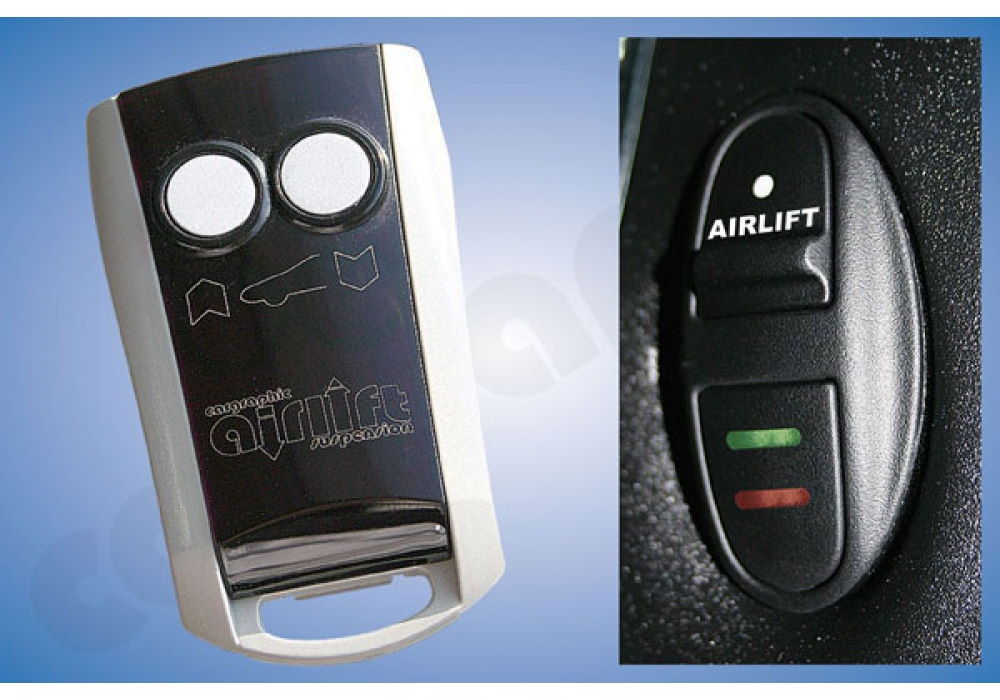

- Flexible operation: Can be controlled via remote or a fixed switch.
How Does the CARGRAPHIC FA-LiftSystem Evolution Work?

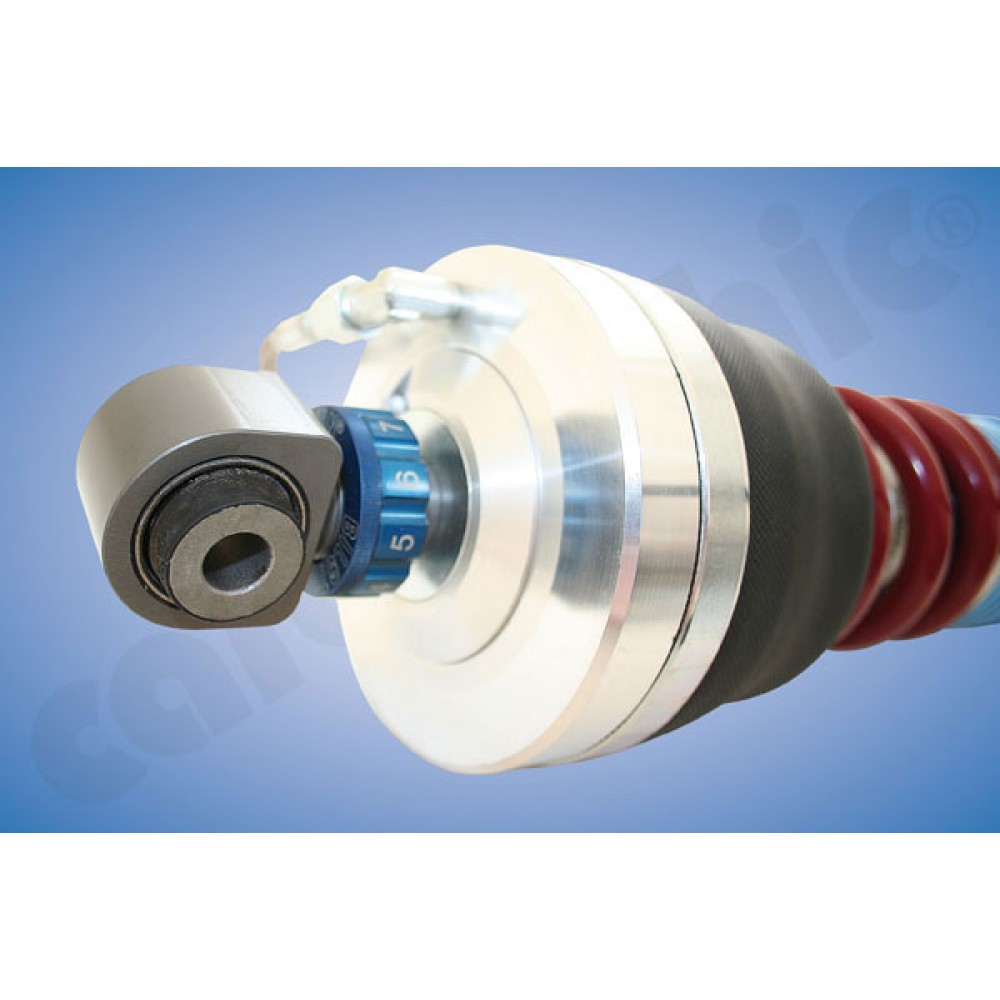

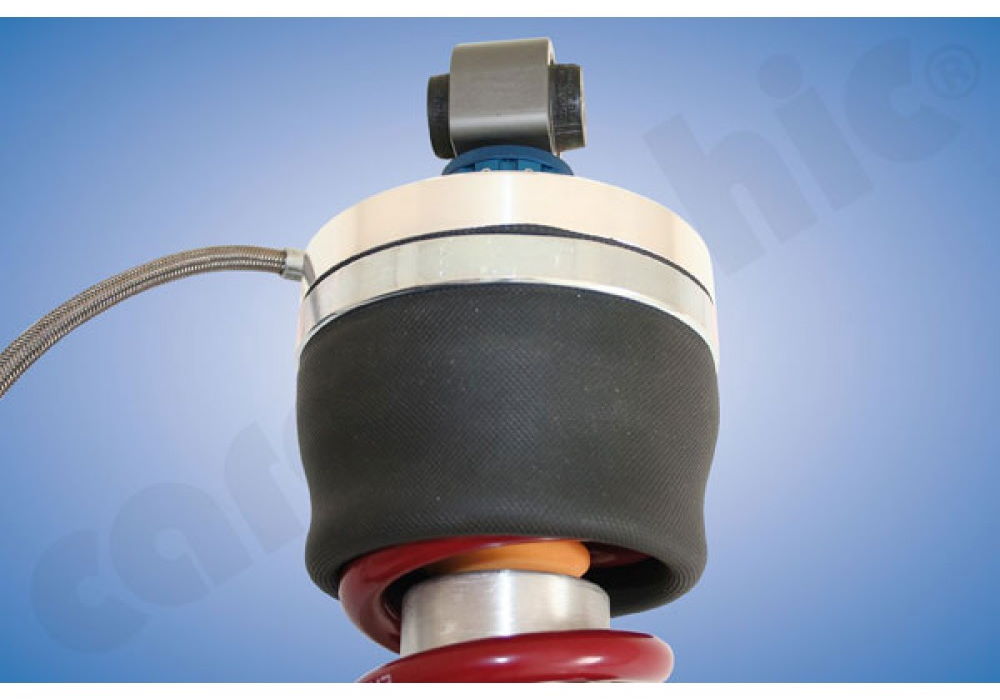

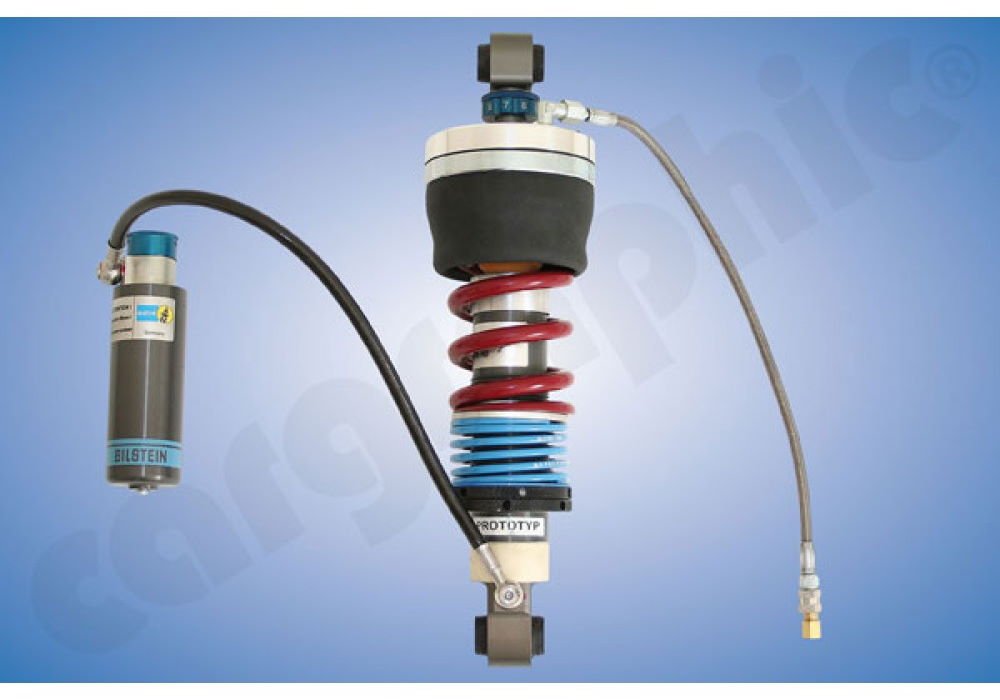

The system is based on a specially developed air spring. This air spring, a compact rubber bellow, expands with incoming air to lift the front of the vehicle. The air spring is installed beneath the upper suspension mount, ensuring no impact on driving dynamics or the choice of wheel/tyre combinations.
Compatibility and Installation Requirements

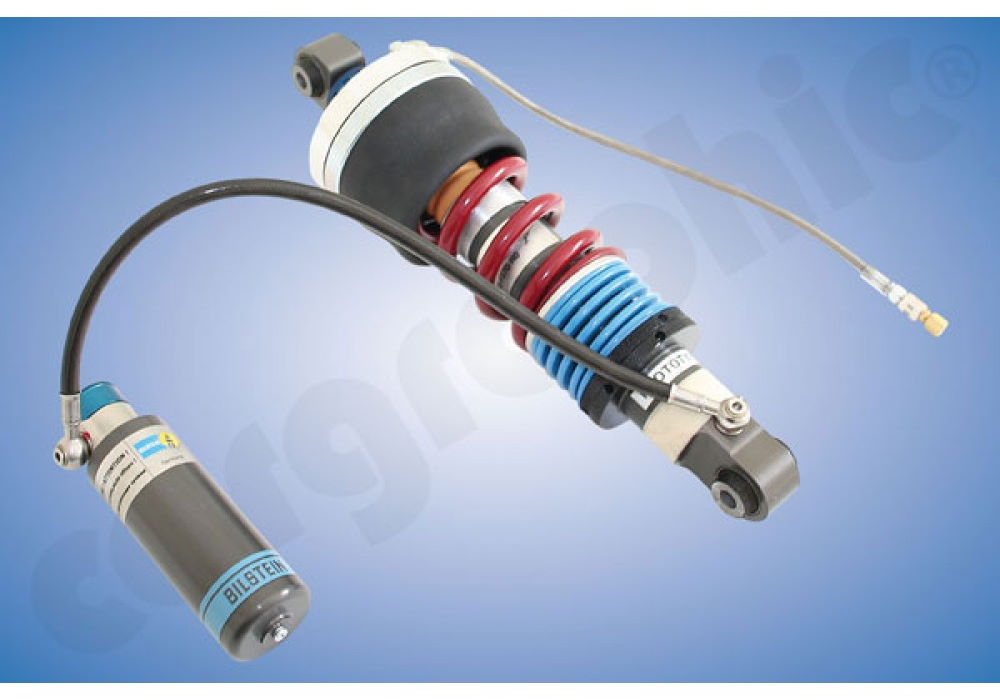

To install this system, you need a coilover suspension with cylindrical suspension springs. The CARGRAPHIC FA-LiftSystem Evolution is available as an upgrade kit and fits suspensions with an outer diameter of 82 mm or 84 mm. If you don't already have a coilover suspension, we offer a selection of compatible systems in partnership with BILSTEIN, Öhlins, and KW.
Safety and Flexibility
Compared to hydraulic systems, the CARGRAPHIC FA-LiftSystem Evolution offers significant advantages due to its pneumatic operation. Since no hydraulic fluid is used, there is no risk of fluid leaks and associated damage. Additionally, its smart design allows you to maintain flexibility in choosing wheel/tire combinations.
Air Supply – Simple and Effective
The system can be filled either by the vehicle’s onboard air compressor from the tire repair kit, which doesn’t compromise trunk space, or by an optional compressor that enables even faster lifting.
