aFe Power
BMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with TubeBMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with Tube

This product was added to our catalog on Friday, 29 July, 2022.

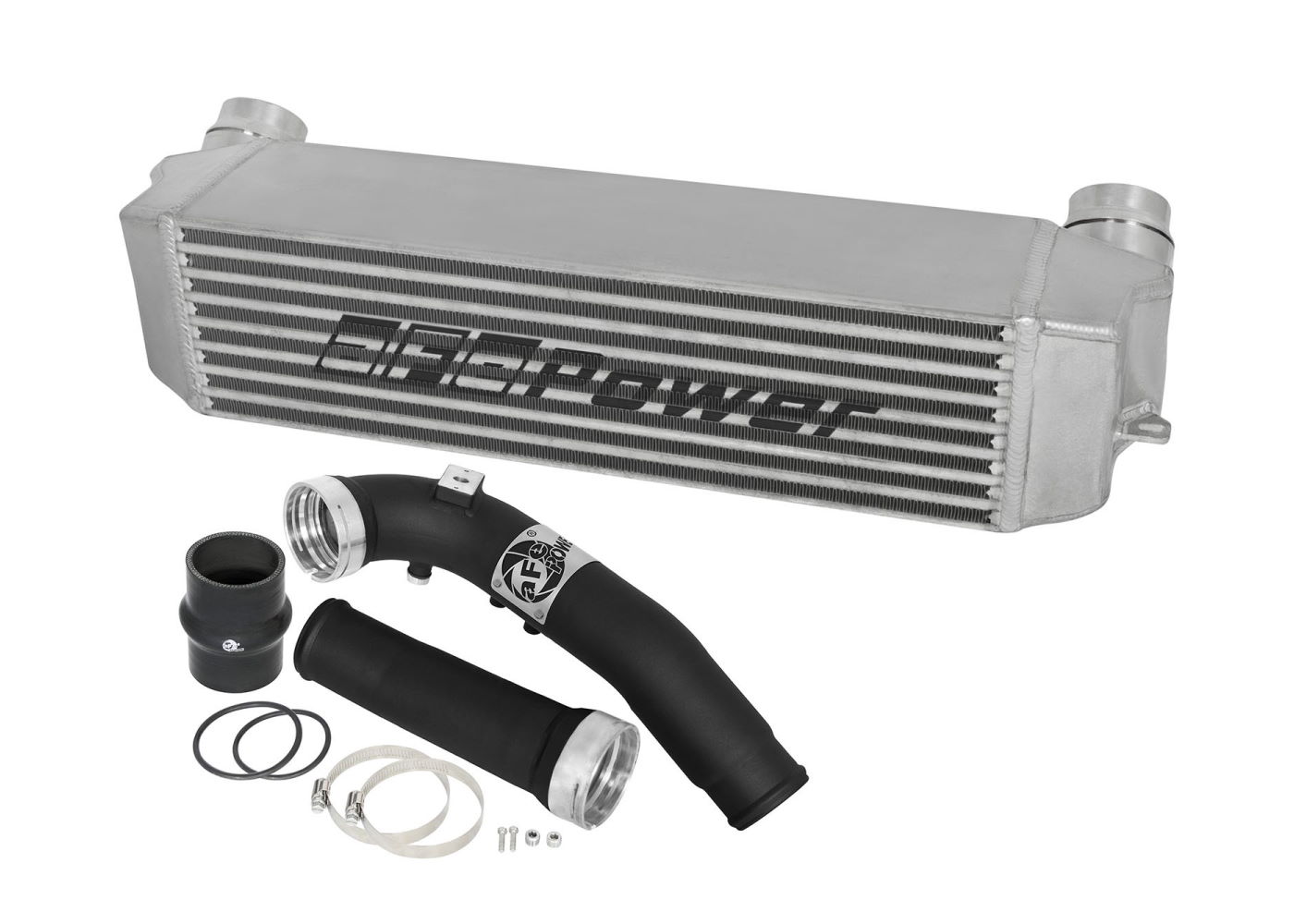

aFe Power BMW 1/2/3/4-Series 2012-2018 2.0T N20/N26 BladeRunner GT Series Intercooler with Tube

Part Number: afe46-20222-B

  • Outflows factory intercooler by 17%
  • Lowers manifold intake air temperature
  • 2-1/2" Billet aluminium inlet and outlet for superior strength & durability
  • Incorporates the factory-style quick connections for intercooler tubes
  • 5" Bar and plate core design that is 29% larger than stock
  • This intercooler is 100% TIG-Welded by certified craftsmen for strength and durability
  • 1/8" NPT ports are provided on both the intercooler and tube for connecting pressure sensors or water methanol injection
  • Absolutely no cutting or modifications are needed for the installation of this intercooler kit

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2018 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 21% and lowered the intake air temperatures.

End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16" thick aluminium plates and include two 1/8" NPT ports for sensors or water-methanol injection.

5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.

TIG-Welded:
100% TIG-Welded inside and out by certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.

Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.

Cold Side Tube:
Constructed of 2-1/2" to 2-3/4" mandrel-bent aluminium tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tube from engine heat and protects the tube from corrosion. Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.

Perfect Fit:
Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory-style quick connections to assure a leak-free connection.

Fits:
2014-2016 BMW 128i (F20/F21) N20 Engine, non-US model L4 2.0L (t) Petrol
2014-2016 BMW 128i xDrive (F20/F21) N20 Engine, non-US model L4 2.0L (t) Petrol
2014-2016 BMW 228i (F22/F23) N20 Engine L4 2.0L (t) Petrol
2015-2016 BMW 228i xDrive (F22/F23) N20 Engine L4 2.0L (t) Petrol
2012-2015 BMW 320i (F30) N20 Engine L4 2.0L (t) Petrol
2016-2018 BMW 320i (F30) B48 Engine L4 2.0L (t) Petrol
2013-2015 BMW 320i xDrive (F30) N20 Engine L4 2.0L (t) Petrol
2016-2018 BMW 320i xDrive (F30) B48 Engine L4 2.0L (t) Petrol
2012-2016 BMW 328i (F30) N20 Engine L4 2.0L (t) Petrol
2012-2016 BMW 328i (F30) N26 Engine L4 2.0L (t) Petrol
2014-2016 BMW 328i GT xDrive (F34) N20 Engine L4 2.0L (t) Petrol
2015-2016 BMW 328i GT xDrive (F34) N26 Engine L4 2.0L (t) Petrol
2013-2016 BMW 328i xDrive (F30/F31) N20 Engine L4 2.0L (t) Petrol
2014-2016 BMW 328i xDrive (F30/F31) N26 Engine L4 2.0L (t) Petrol
2014-2016 BMW 420i (F32/F33) N20 Engine, non-US model L4 2.0L (t) Petrol
2014-2016 BMW 420i Gran Coupe (F36) N20 Engine, non-US model L4 2.0L (t) Petrol
2014-2016 BMW 428i (F32/F33) N20 Engine L4 2.0L (t) Petrol
2014-2016 BMW 428i (F32/F33) N26 Engine L4 2.0L (t) Petrol
2015-2016 BMW 428i Gran Coupe (F36) N20 Engine L4 2.0L (t) Petrol
2015-2016 BMW 428i Gran Coupe (F36) N26 Engine L4 2.0L (t) Petrol
2014-2016 BMW 428i xDrive (F32/F33) N20 Engine L4 2.0L (t) Petrol
2014-2016 BMW 428i xDrive (F32/F33) N26 Engine L4 2.0L (t) Petrol
2015-2016 BMW 428i xDrive Gran Coupe (F36) N20 Engine L4 2.0L (t) Petrol
2015-2016 BMW 428i xDrive Gran Coupe (F36) N26 Engine L4 2.0L (t) Petrol

$4,267.61 Aud

* All prices include delivery

BackOrder (Available for order from Manufacturer)
Reviews No product ratings available.
